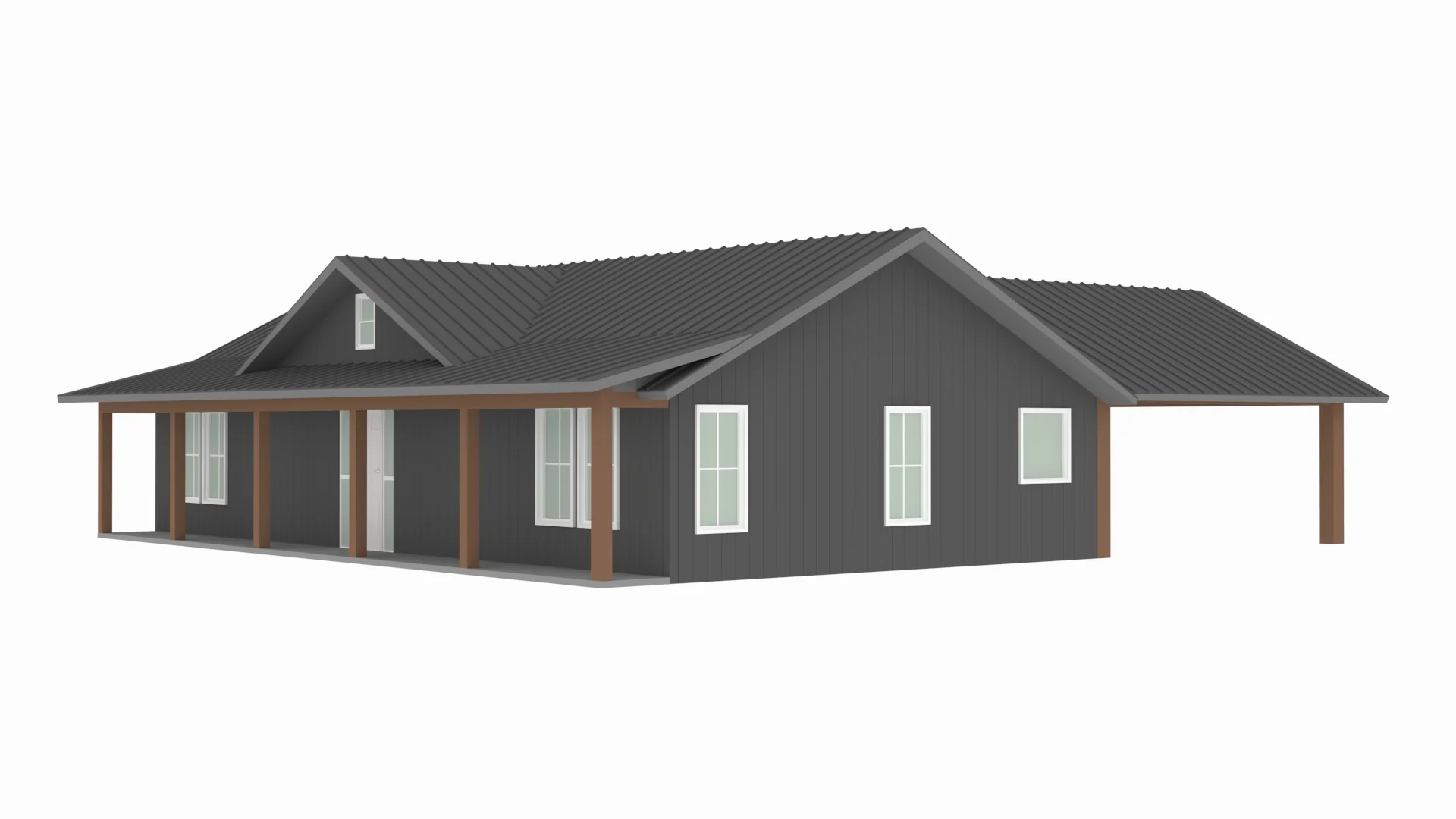

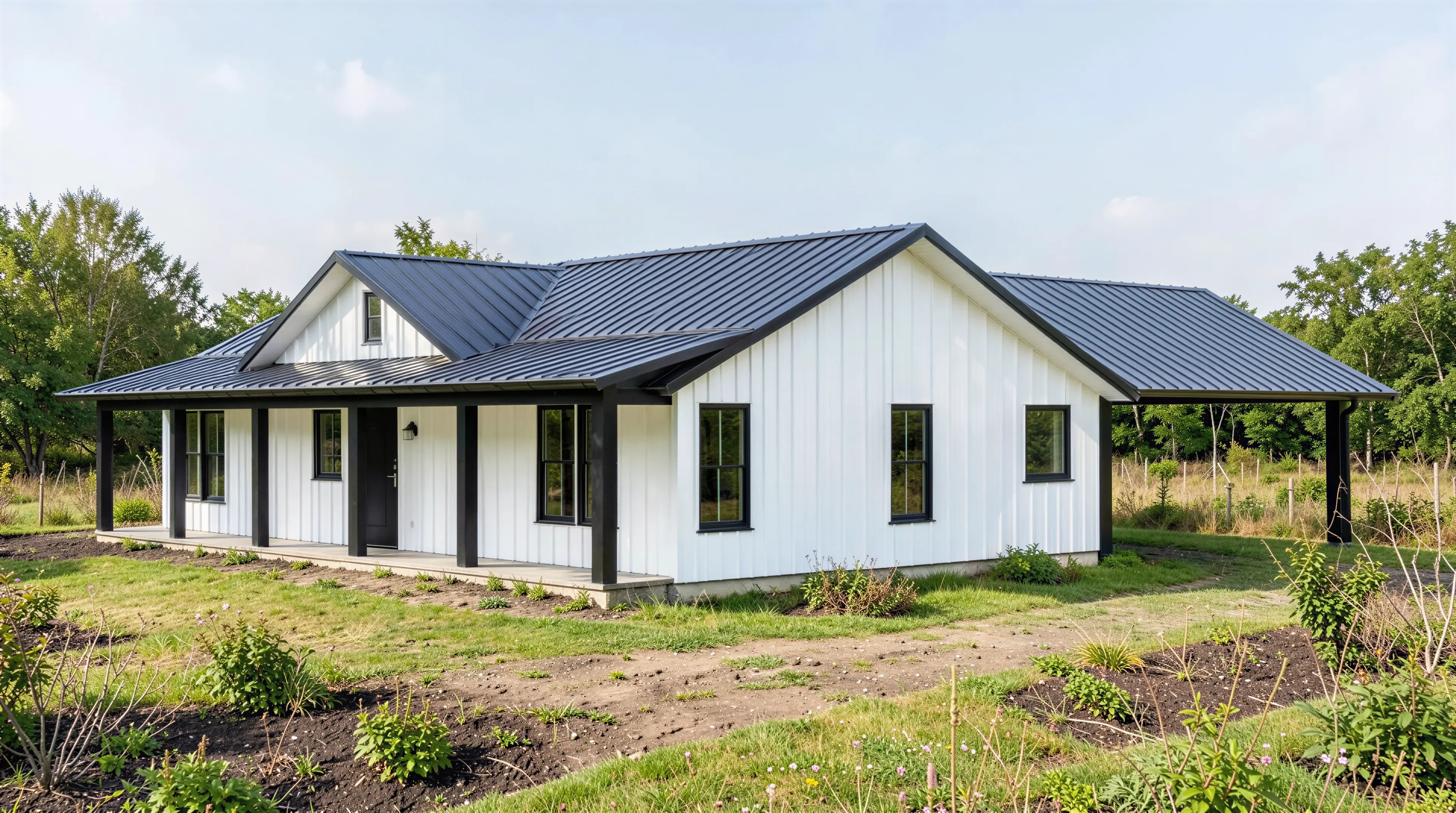

BCO-40067-W West Barndominium House Plan

BCO-40067-W West Barndominium House Plan



About this barndominium house plan:

• 1566 Heated Square Feet

• 3 Bedrooms

• 2 Bathrooms

• Single Story

• Open concept

• Utility room

• Front Porch

• Carport

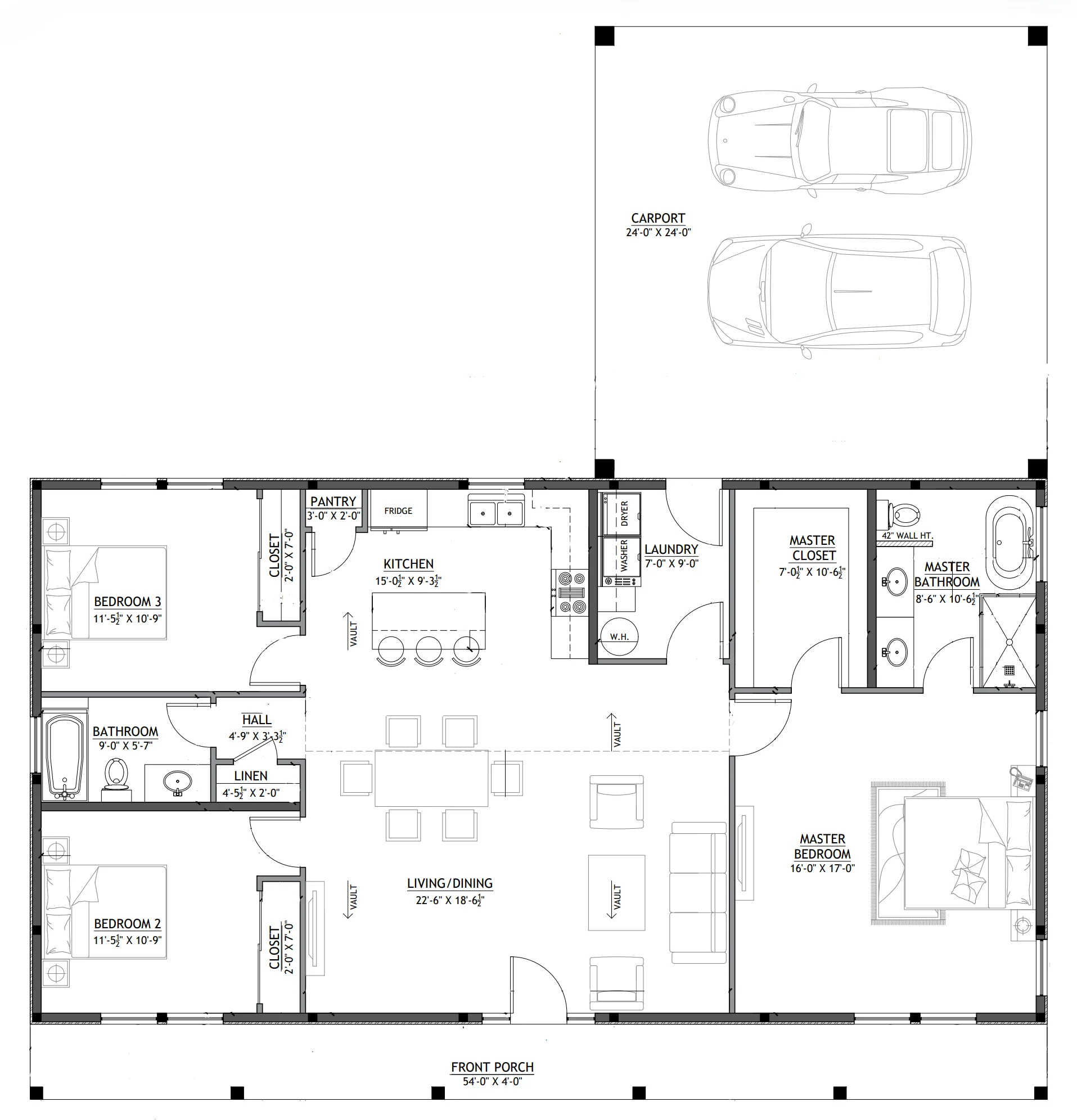

• A well-proportioned 1,566 SF heated floor plan delivers the ultimate convenience of one-level living with an open, accessible traffic pattern throughout.

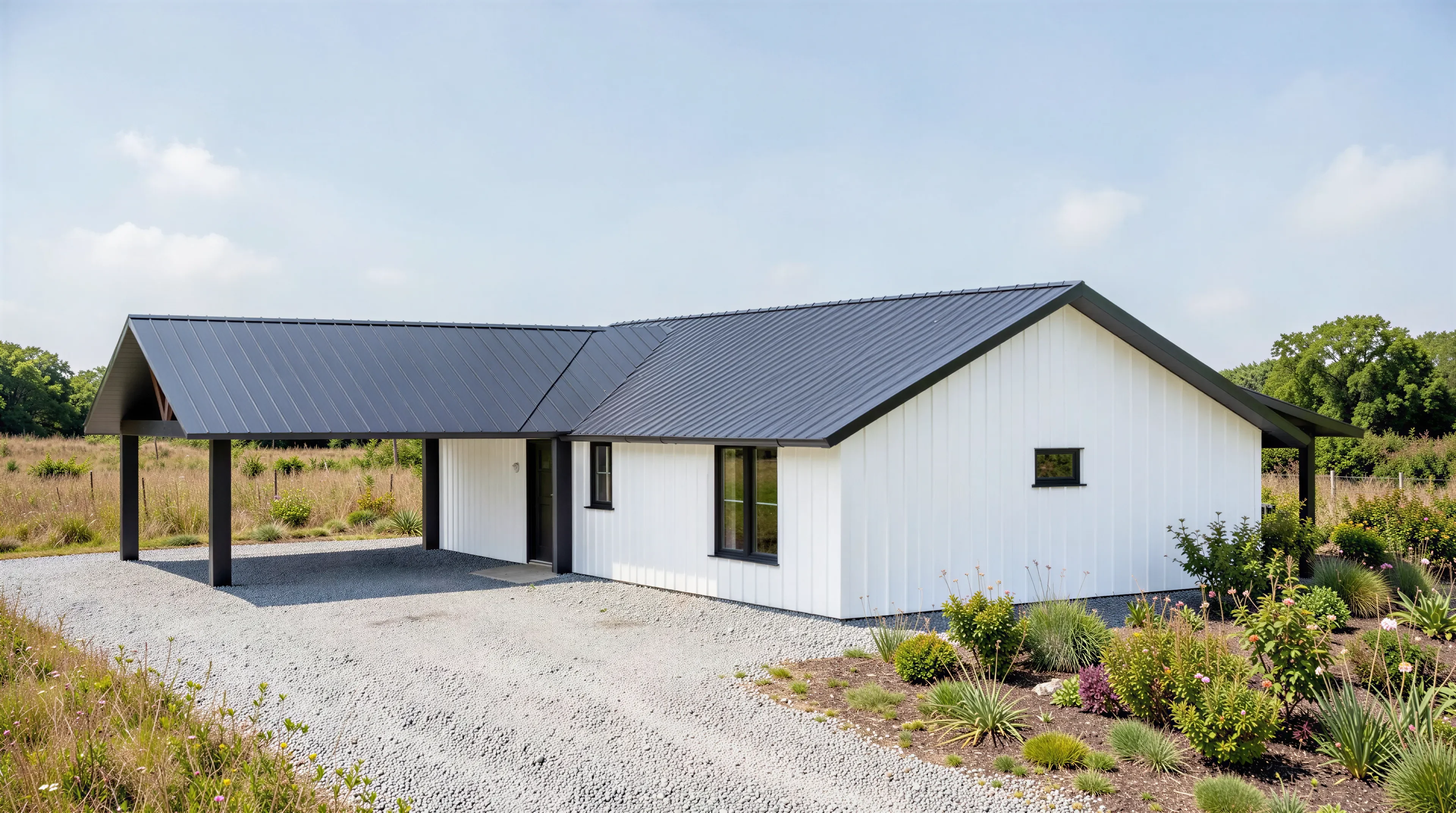

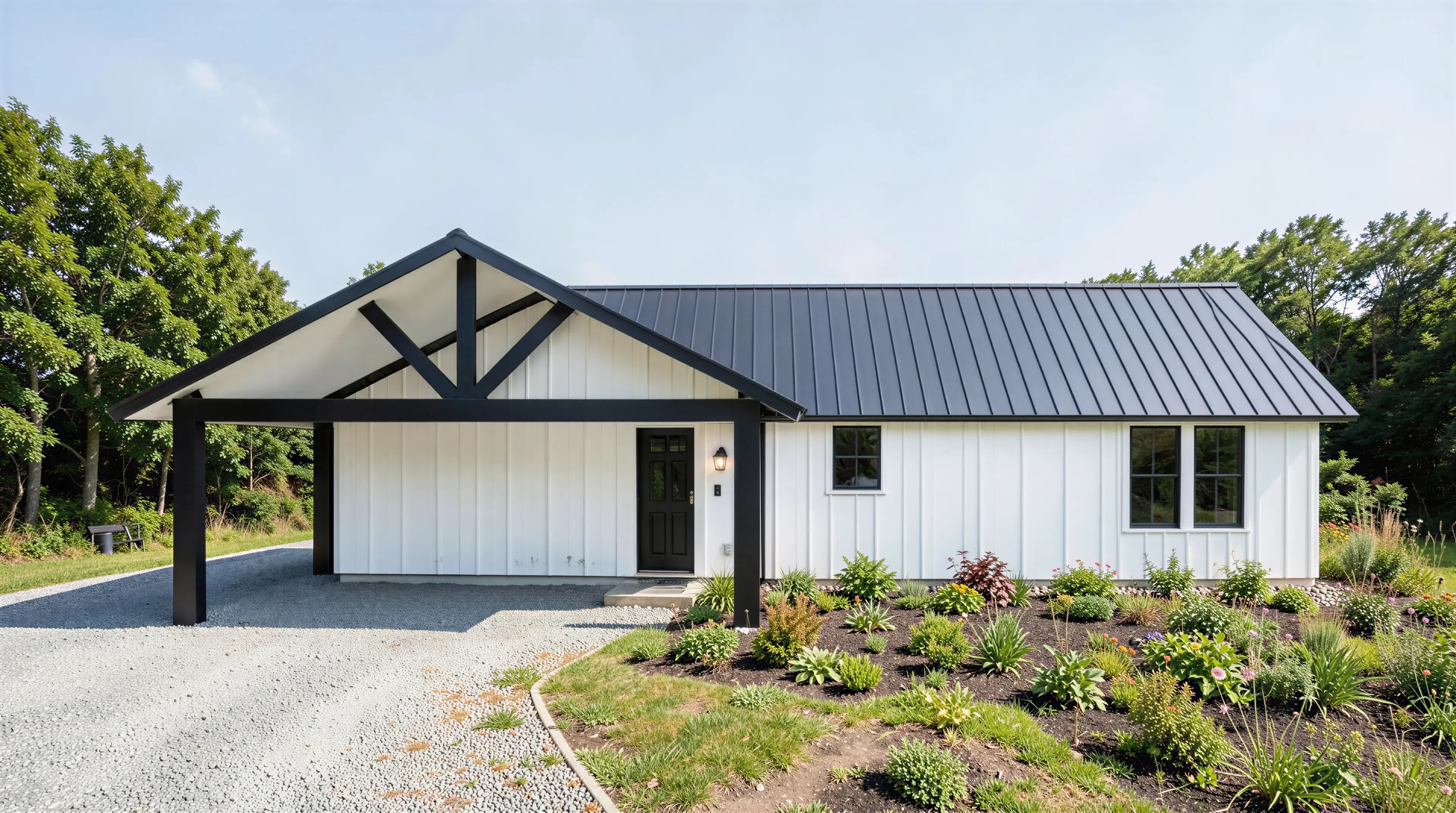

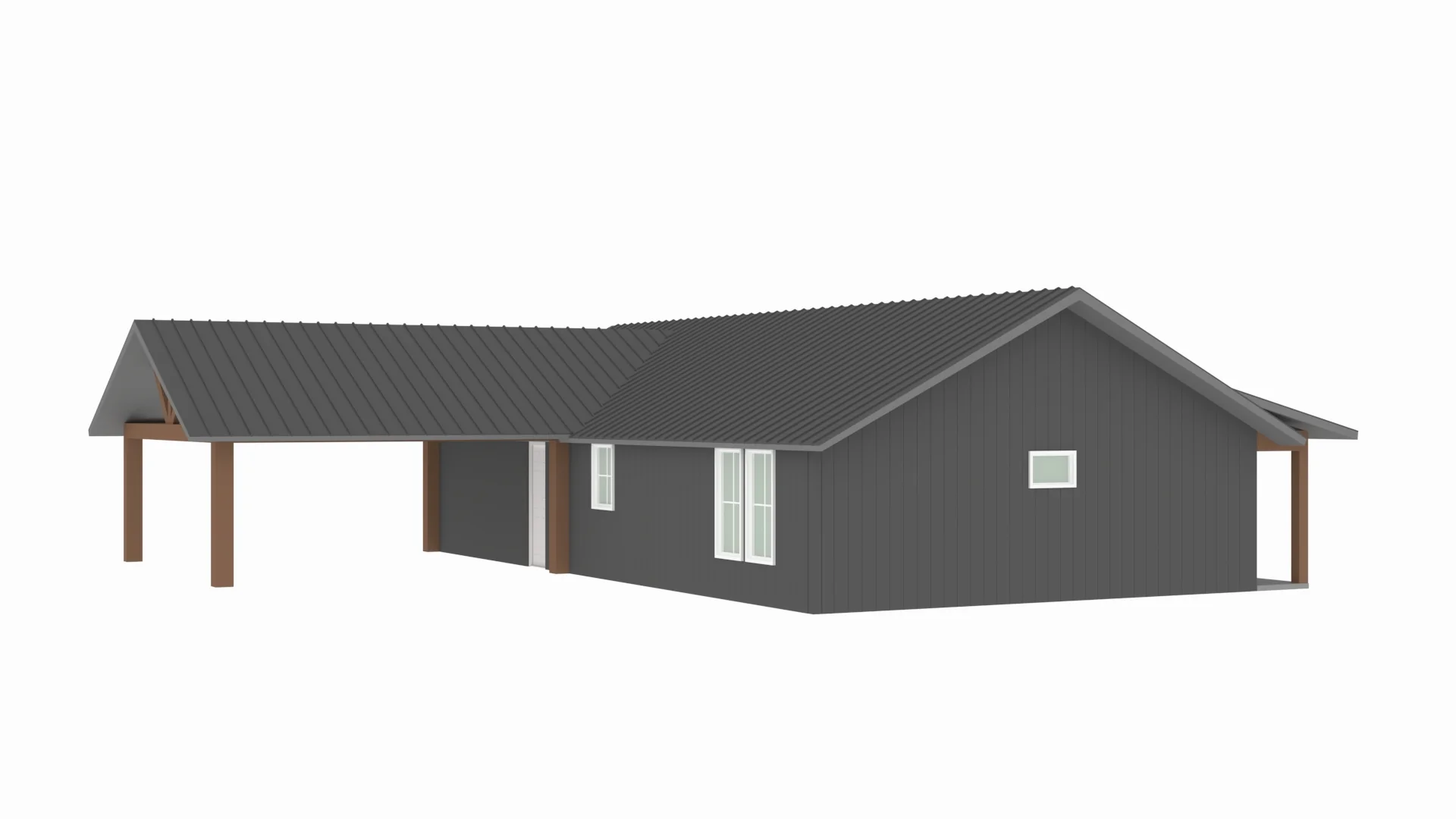

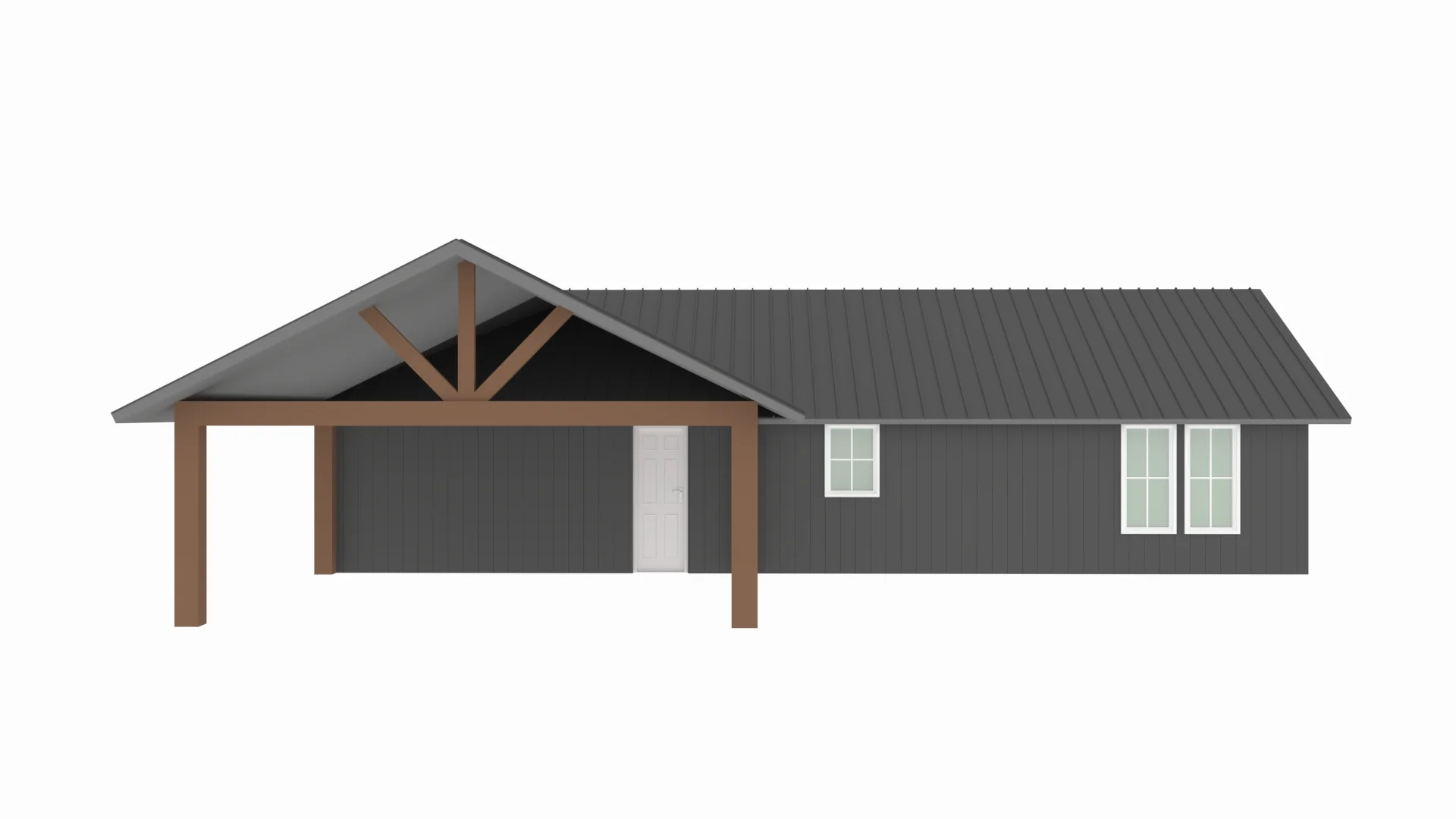

• The attached carport provides sheltered parking for two vehicles and includes direct, weather-protected access straight into the home's utility core.

• Features a split-bedroom layout that isolates a massive master sanctuary on the right side of the plan, completely separated from the two secondary bedrooms.

• Includes an upscale master bathroom alongside a large shared family bathroom.

• The modern culinary workspace features a layout anchored by a central island with bar seating for three, a double sink, and a dedicated walk-in pantry.

• The dedicated utility space features laundry appliance hookups, a water heater station, and serves as a highly practical transition zone from the carport entrance.

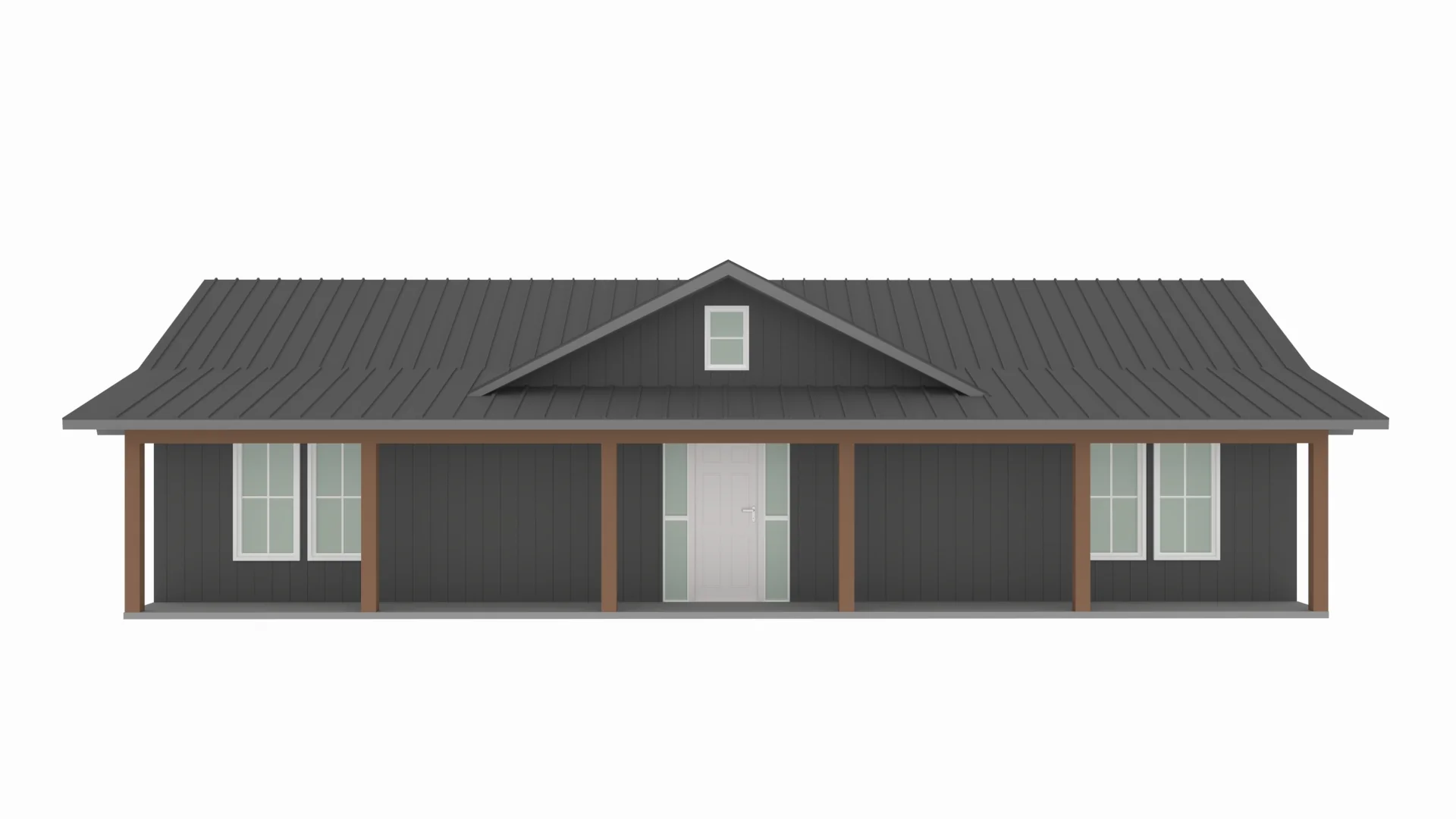

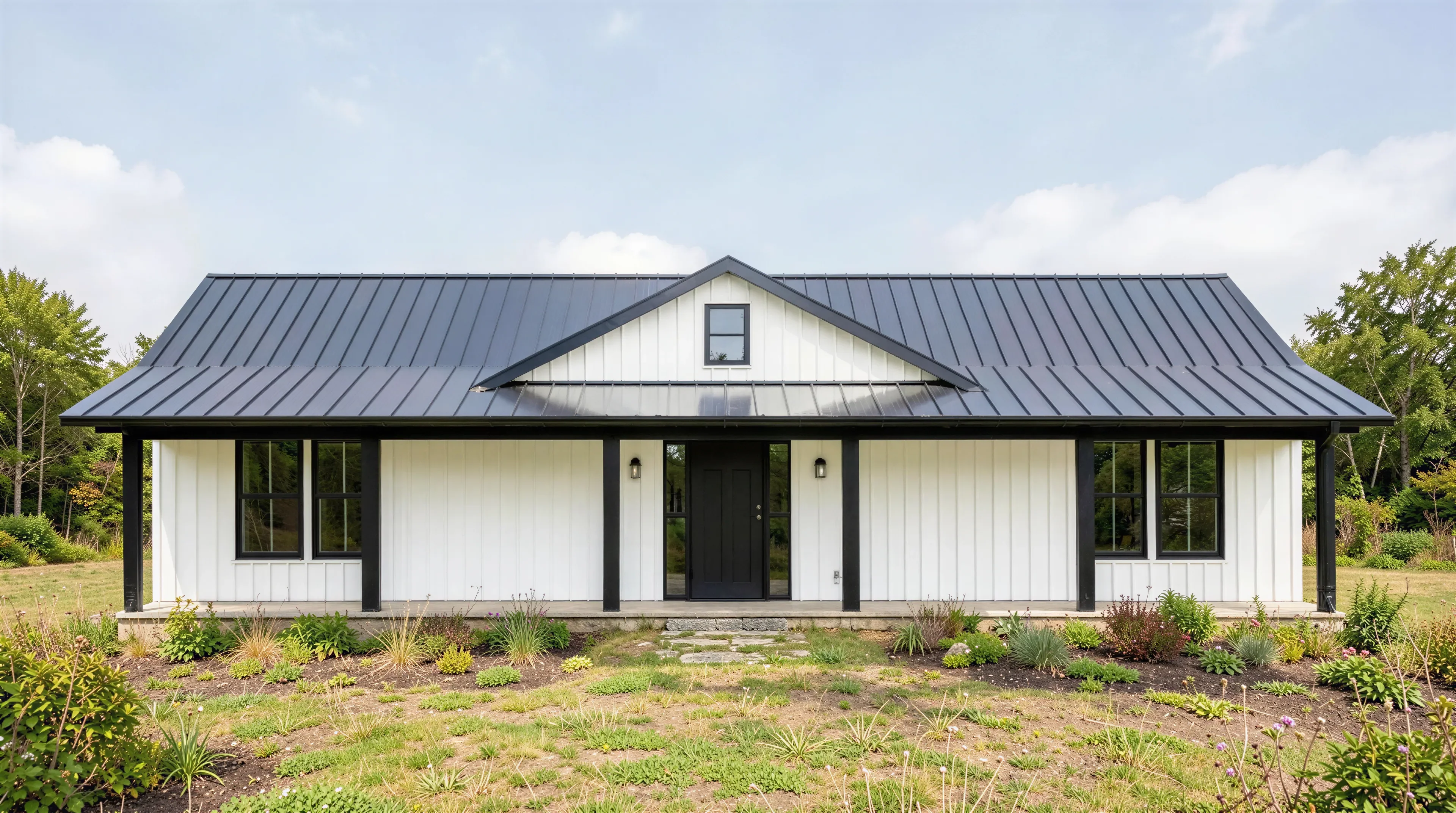

• A full-length covered front porch delivers instant rural charm and strong street-side curb appeal.



What's included in BCO-40067-W:

Cover Page
Floor Plan
Roof Plan
Front And Rear Elevation
Right And Left Elevation
Electrical Plan
Plumbing Plan
HVAC Plan
Roof Framing Plan
Foundation Plan
Slab Detail
Porch Post Detail
Wall Section



For more barndominium floor plans, check out our complete collection of 3-bedroom barndominium floor plans.



Need to make changes? Submit a modification request using the button that says Modify This Plan . We will get you a free price quote within 72 hours
