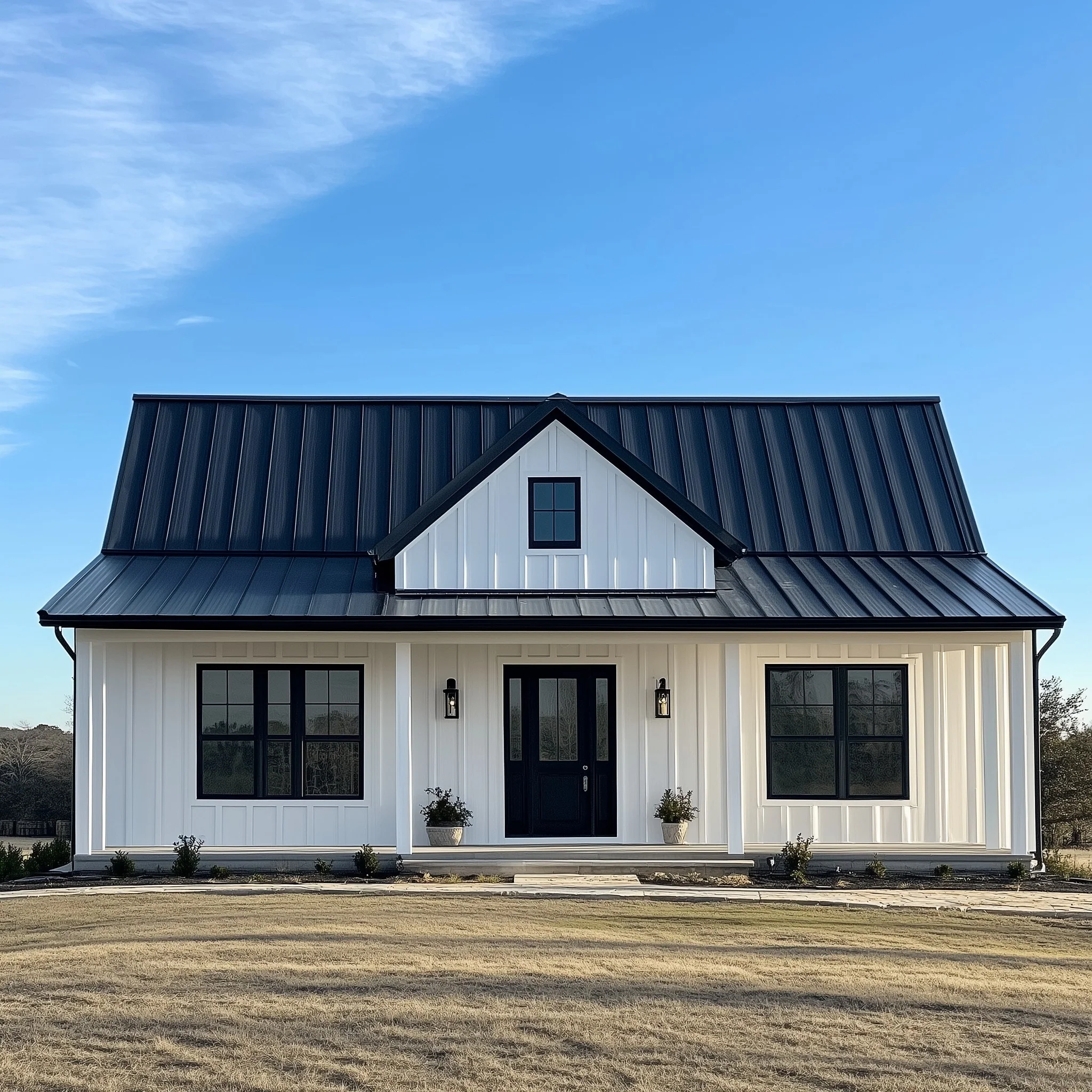

BCO-40069 Jay Barndominium House Plan

BCO-40069 Jay Barndominium House Plan

About this barndominium house plan:

• 1750 Heated square feet

• 35x50 living space dimension

• 2 Bedrooms

• 2 Bathrooms

• Single Story

• Open concept

• Front porch


• This single-story home, BCO-40069, encompasses 1750 square feet, with overall dimensions of 50 feet in length and 35 feet in width.
• The floor plan features two bedrooms, including Bedroom 1 measuring 14' x 13'.
• It also provides two bathrooms, one specifically sized 12' x 7'6" and the other 7'6" x 8'.
• The central living area includes a living room of 20' x 22' and a dining room measuring 17' x 22', adjacent to a kitchen that is 24' x 13'.
• This design offers a well-appointed and functional living space suitable for a family, without an integrated garage.

What's included in BCO-40069:

Cover Page
Floor Plan
Roof Plan

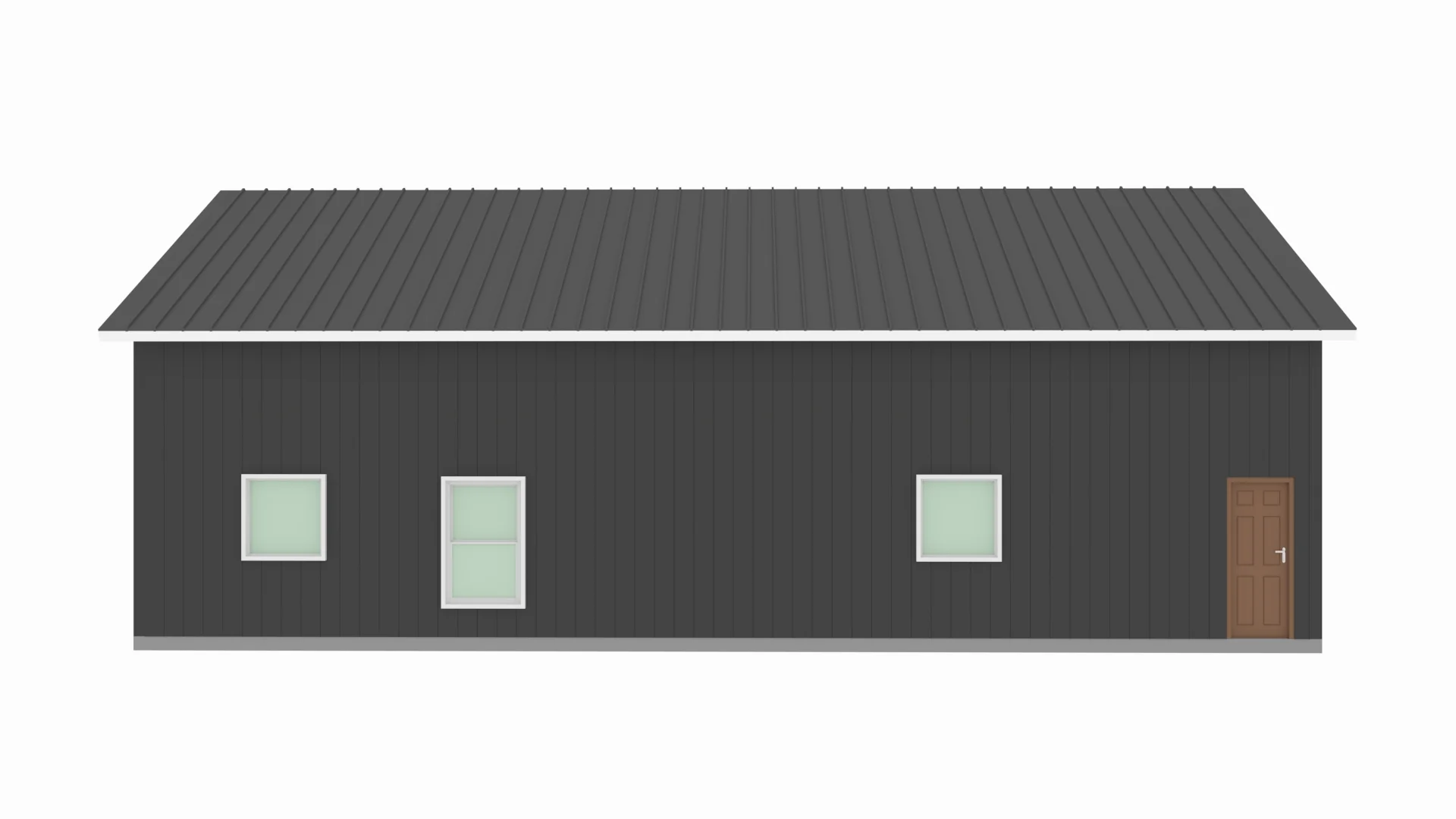

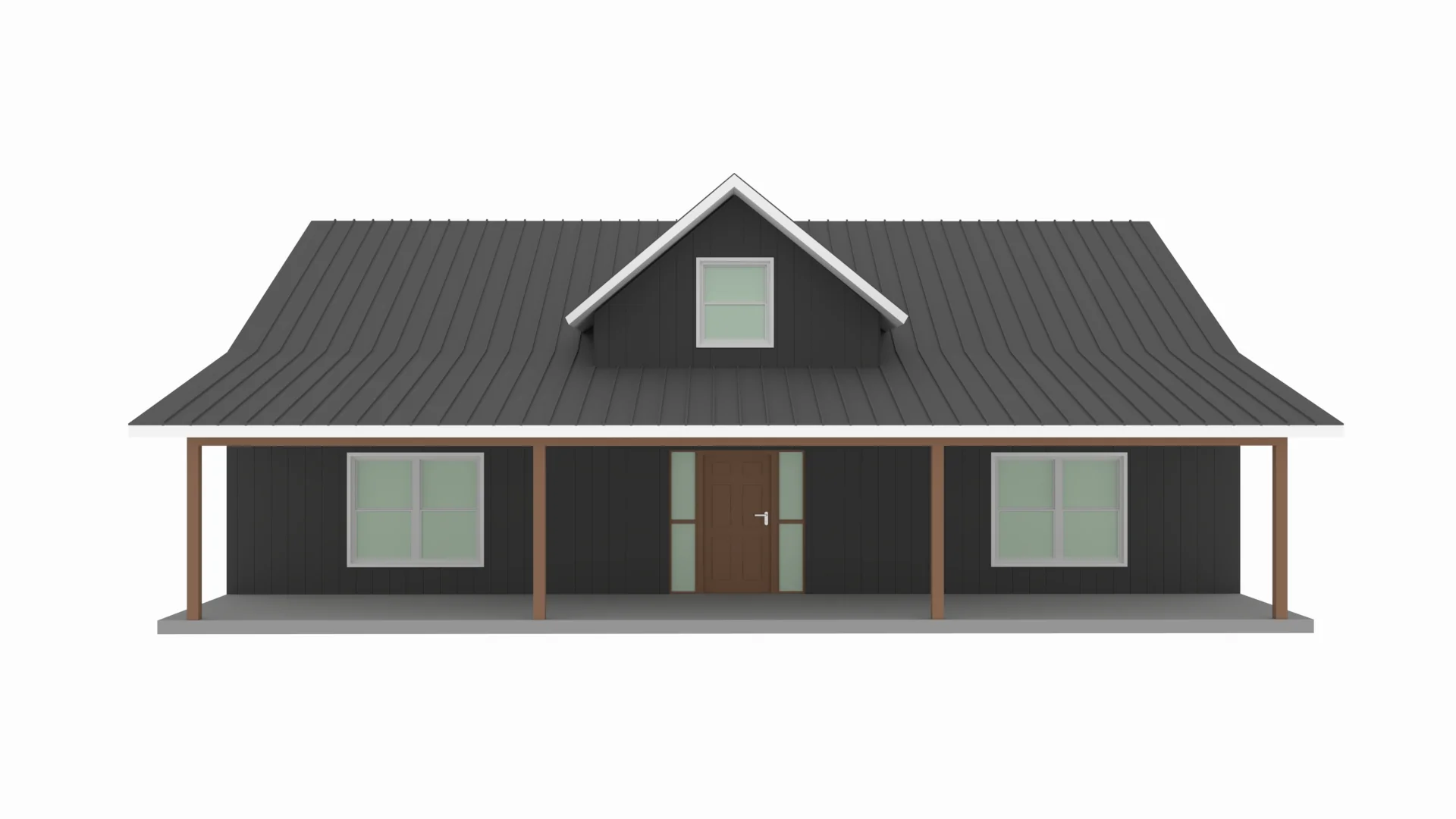

Front And Rear Elevation
Right And Left Elevation
Electrical Plan
Plumbing Plan
HVAC Plan
Roof Framing Plan
Foundation Plan
Foundation Detail
C-Typical Column Detail
Wall Section

For more barndominium floor plans, check out our complete collection of 2-bedroom barndominium floor plans.

Need to make changes? Submit a modification request using the button that says Modify This Plan . We will get you a free price quote within 72 hours
