PL-62512-V Vail Barndominium House Plan

PL-62512-V Vail Barndominium House Plan



About this barndominium house plan:

• 2800 Heated Square Feet

• 40x70 Living Space Dimension

• 3 Bedrooms

• 2 Bathrooms

• Single Story

• Open concept

• Office

• Laundry room

• Front and Rear Porch




• The streamlined rectangular footprint delivers a cost-effective build while providing a spacious 2,800 SF heated interior with massive room dimensions.

• Features a split-bedroom wing configuration, anchoring a master retreat on one side of the home and two spacious secondary bedrooms on the opposite end.

• Includes a luxury master ensuite, alongside a large guest bathroom with a separate dressing room zone.

• A dedicated private office space is situated near the master wing, providing an ideal work-from-home environment tucked away from the main living area.

• The premium culinary workspace features an expansive central island, a coffee bar, and an abundance of counter space.

• The dedicated laundry room offers extensive workspace, utility sinks, counter space, and a centralized home water heater closet.

• Features full-width, 70-foot long sheltered porches on both the front and rear of the structure, adding 1,400 SF of total covered outdoor living space.



What's included in PL-62512-V:

Cover Page

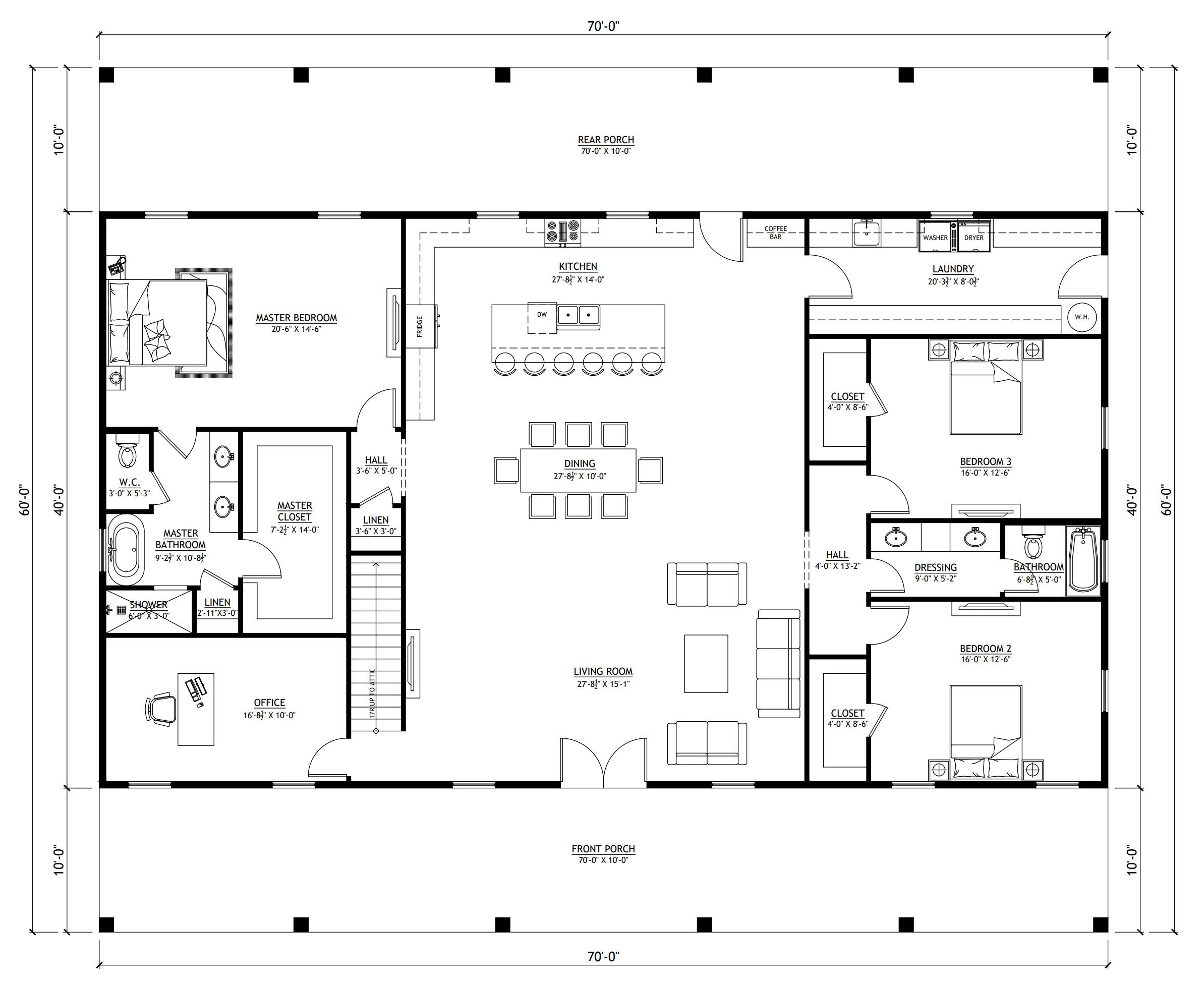

Floor Plan
Roof Plan
Front And Rear Elevation
Right And Left Elevation
Electrical Plan
Plumbing Plan
HVAC Plan
Roof Framing Plan
Foundation Plan
Foundation Detail
Interior Bearing Footing
C-Typical Column Detail
Wall Section





For more barndominium floor plans, check out our complete collection of 3 bedroom barndominium floor plans.



Need to make changes? Submit a modification request using the button that says Modify This Plan . We will get you a free price quote within 72 hours
