PL-2846 Maddox Barndominium House Plan

PL-2846 Maddox Barndominium House Plan



About this barndominium house plan:

• 3820 Heated Square Feet

• 3 Bedrooms

• 4 Bathrooms

• Two Story

• Open concept

• His/Her Master Closets

• Loft

• Office

• Walk-in Pantry

• Laundry/Mudroom

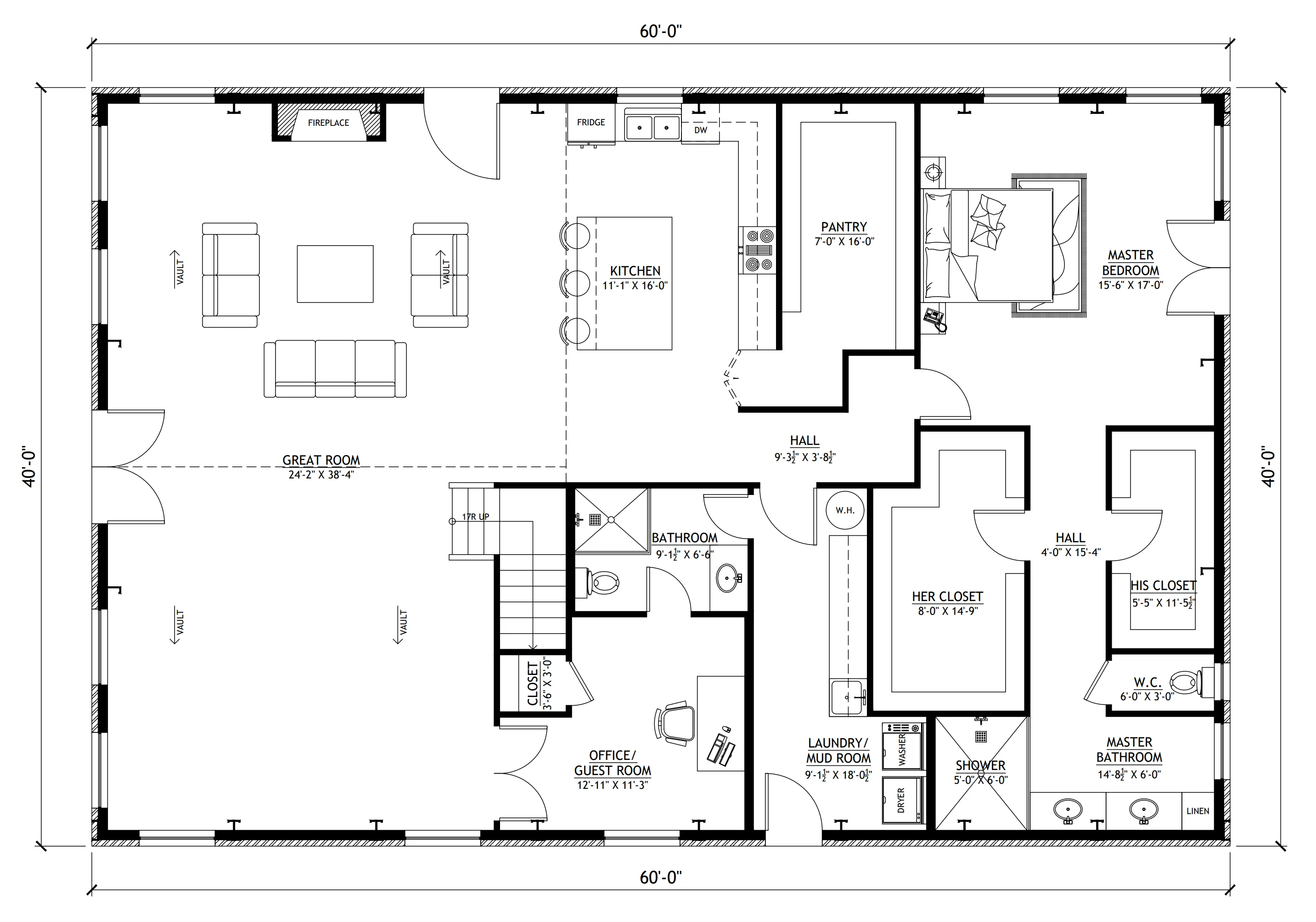

• Main floor features a large great room with vaulted ceilings and a fireplace, creating an inviting space for everyday living and entertaining.

• The open kitchen includes a large island, a generous walk-in pantry, and flows seamlessly into the main living area.

• Private master suite offers a peaceful retreat with separate his-and-her walk-in closets, a spacious bathroom.

• An office that can easily double as a guest room sits near a full bathroom, making it ideal for visitors or working from home.

• A dedicated laundry and mudroom adds convenience to daily routines.

• Upstairs, two oversized bedrooms each have their own walk-in closet and access to own full bathrooms, giving everyone extra privacy.

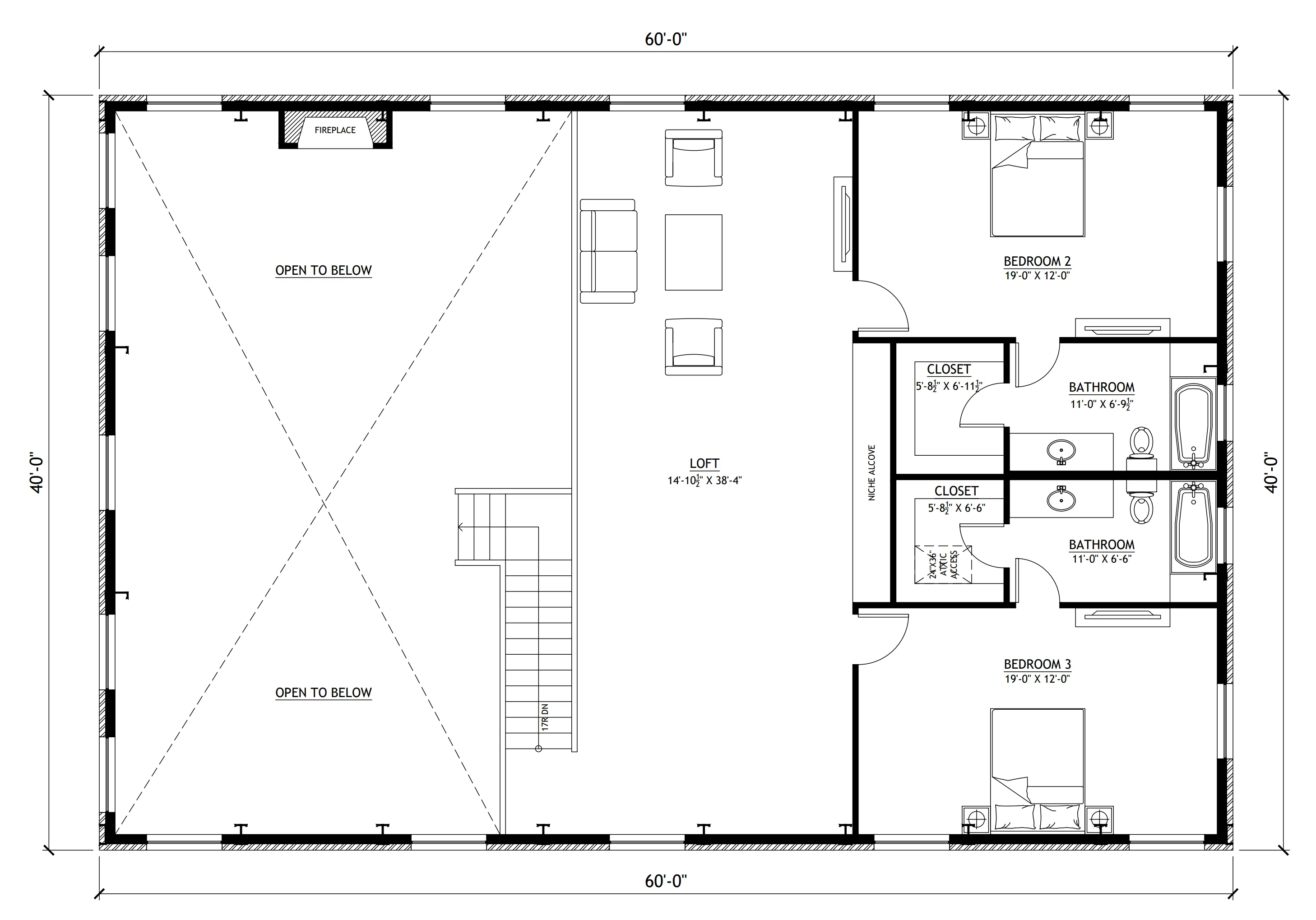

• A large loft overlooking the great room below provides flexible space for a media room, game room, or second family lounge.





What's included in PL-2846:

Cover Page
Main Floor Plan
Mezzanine Floor Plan
Roof Plan
Front And Rear Elevation
Right And Left Elevation
Main Floor Electrical Plan
Mezzanine Electrical Plan
Main Floor Plumbing Plan
Mezzanine Plumbing Plan
Main Floor HVAC Plan
Mezzanine HVAC Plan
Roof Framing Plan
Foundation Plan
Foundation Detail
Interior Bearing Footing
C-Typical Column Detail
Wall Section
Edge of Slab Detail



For more barndominium floor plans, check out our complete collection of 3-bedroom barndominium floor plans.



Need to make changes? Submit a modification request using the button that says Modify This Plan. We will get you a free price quote within 72 hours.
